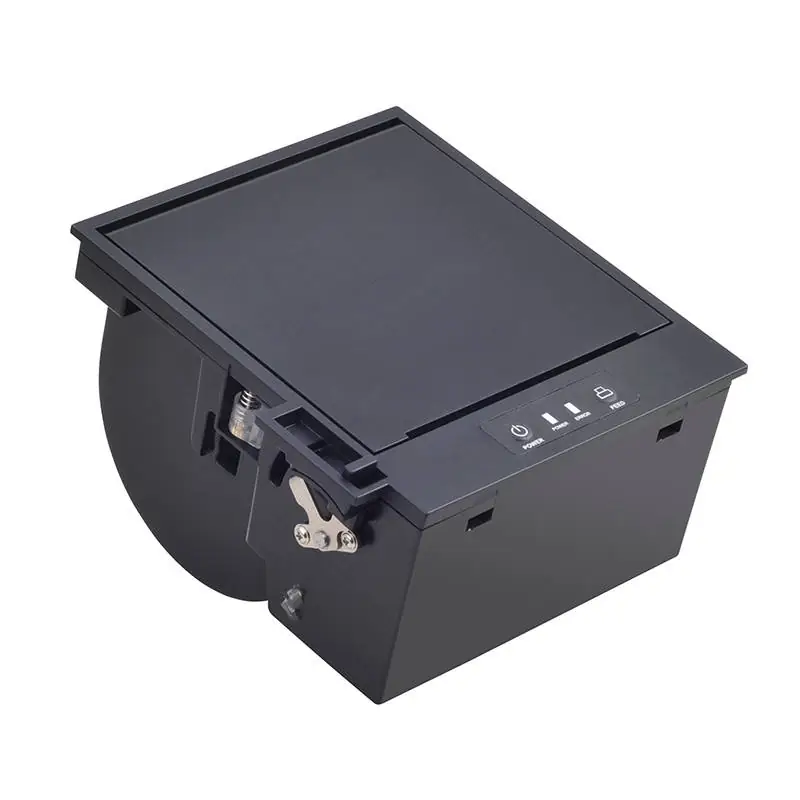

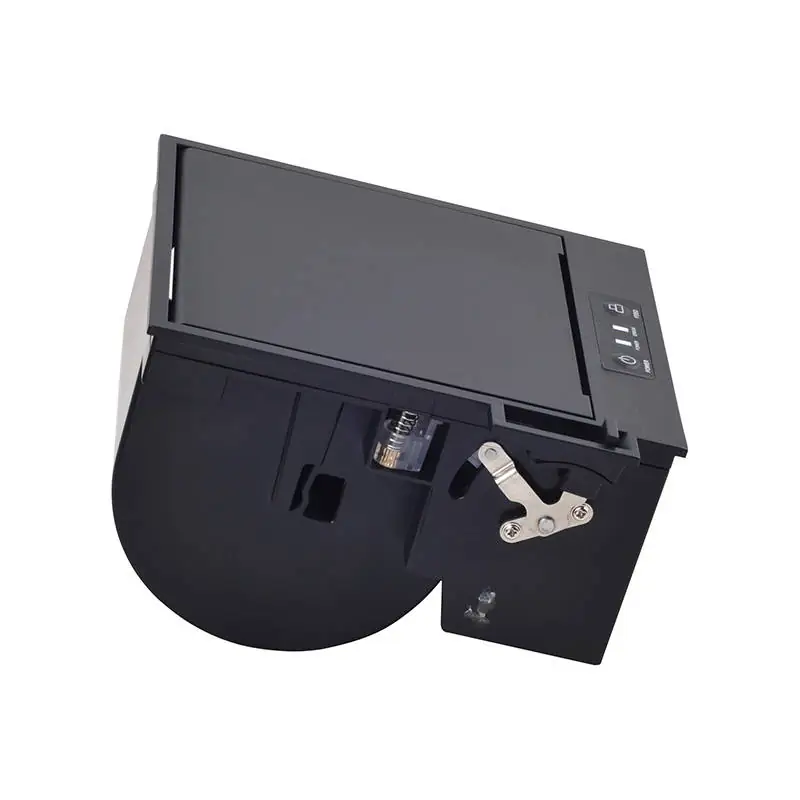

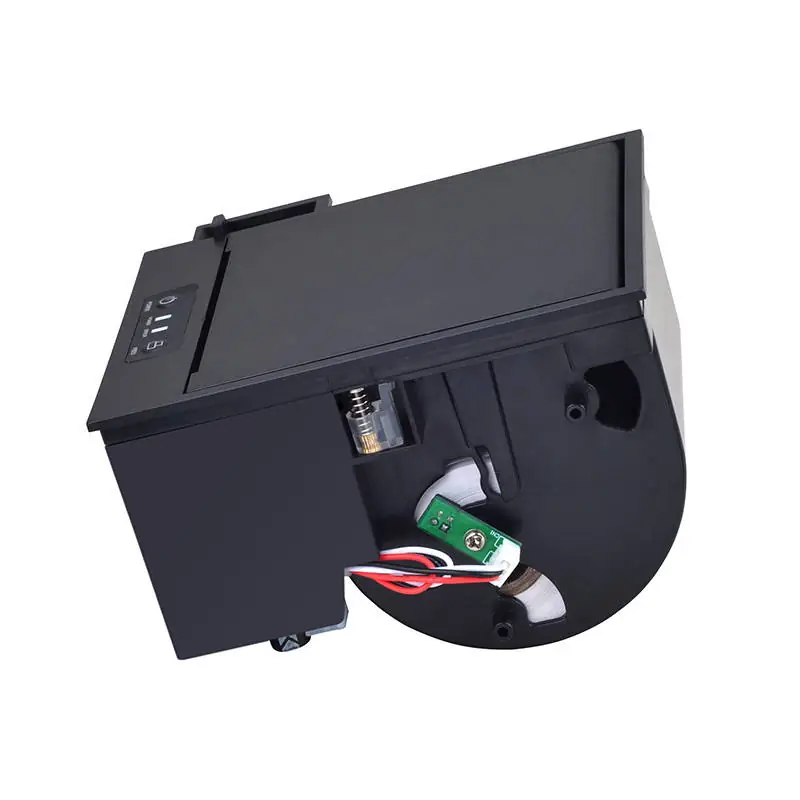

Xprinter MP80PC 80mm Panel Printer
An 80mm thermal panel printer designed for integration into equipment and systems that need receipt output directly from the device enclosure.
- Brand
- Xprinter
- Category
- Thermal Receipt Printer
- Model
- MP80PC
Similar Products Available Now
Printer Specifications
- تقنية الطباعة
- Direct Thermal
Media Handling
- Media Width
- 79.5 ± 0.5 mm
- Maximum Paper Roll Diameter
- 80 mm
- Print Width
- 48 / 72 mm
- سرعة الطباعة
- 160 mm/s
- Print Resolution
- 203 dpi
- Input Buffer
- 256 KB
Printing
- Line Spacing
- 3.75 mm
- Adjustable Line Spacing
- Yes
- Column Number
- 80 mm paper: Font A – 42 or 48 columns; Font B – 56 or 64 columns; Simplified/Traditional Chinese – 21 or 24 columns
Memory
- NV Flash Memory
- 4 MB MB
Fonts
- Font A Size
- 1.5 × 3.0 mm (12 × 24 dots)
- Font B Size
- 1.1 × 2.1 mm (9 × 17 dots)
- Chinese Font Size
- 3.0 × 3.0 mm (24 × 24 dots), Simplified/Traditional Chinese
- Character Set
- PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic #2), PC852 (Latin 2), PC858, Iran II, Latvian, Arabic, PT151 (1251)
- GB18030 Character Set Support
- Yes
Barcode Support
- Supported 1D Barcodes
- UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
- Supported 2D Barcodes
- QR Code
Power
- Power Adapter Output
- DC 24 V, 2.5 A
- Printer Input
- DC 24 V, 2.5 A
- Cash Drawer Output
- DC 24 V, 1 A
Physical
- Dimensions
- 136.03 × 118.63 × 88.70 mm
- Weight
- 0.37 kg
Environment
- Operating Temperature
- 0 to 45 °C
- Operating Humidity
- 10 to 80 %
- Storage Temperature
- -10 to 60 °C
- Storage Humidity
- 10 to 90, non-condensing %
Reliability
- Auto Cutter
- Automatic cutter with adjustable full-cut and partial-cut modes
- Cutter Life
- 1000000 cuts
- Printhead Life
- 100 km
- Intelligent Anti-paper-jam Cutter
- Yes
Connectivity
- Supported OS
- Windows, Android and Apple systems
- Interface
- USB + Serial
Features
- Error Alarm Support
- Yes
- Order Coming Alert
- Yes
- QR Code Printing
- Yes
- Logo Download and Printing
- Yes
- Paper Out Indicator
- Yes
General
- Model
- XP-MP80PC
Quick comparison with available alternatives
| Attribute | Reference model | Xprinter XP-P802A - 80mm | Thermal Printer Xprinter XP-... |
|---|---|---|---|
| سرعة الطباعة | 160 | 70 | 230/260/300 |
| تقنية الطباعة | Direct Thermal | Line thermal | Direct thermal |
| Interface | USB + Serial | USB + Bluetooth | USB |
| Supported OS | Windows, Android and Apple systems | Windows, Android, iOS, Linux | Windows, Linux, macOS, Android |
| Media Width | 79.5 ± 0.5 | Not specified in the available data | 79.5±0.5 |
| Operating Temperature | 0 to 45 | 0–40 | 0–45 |
| Storage Temperature | -10 to 60 | -25–55 | -10–60 |
| Operating Humidity | 10 to 80 | 25 – 85 | 10–80 |
Compare with available products
Frequently asked questions about Xprinter MP80PC receipt printer
What are the main specifications, features, and functions of the Xprinter MP80PC 80mm Panel Printer?
The Xprinter MP80PC is an integrated thermal receipt printer with a panel-mount design and support for 80mm paper. Its stated function is to print receipts directly from the enclosure of the device or system in which it is installed. Print speed, resolution, interfaces, and other technical specifications are not mentioned in the available data.
What types of applications is the Xprinter MP80PC 80mm Panel Printer suitable for?
This model is suitable for devices and systems that require a built-in thermal printing unit to produce receipts directly through the equipment enclosure rather than using a separate external printer. Users should confirm that the 80mm paper format and panel installation method fit their project. Dimensions and connectivity details are not mentioned in the available data.
Is this Xprinter MP80PC 80mm Panel Printer page for purchasing or for research and comparison?
This is a reference and research page intended to help users review the available information about the Xprinter MP80PC and compare its stated purpose with their requirements. It is not a current sales offer, and the product is currently unavailable. No specific alternatives were provided, but you can review currently available products in the same category.
Where can I find a similar alternative to MP80PC?
You can review currently available alternatives to MP80PC: Xprinter XP-P802A - 80mm · Thermal Printer Xprinter XP-Q838L - 80mm.
