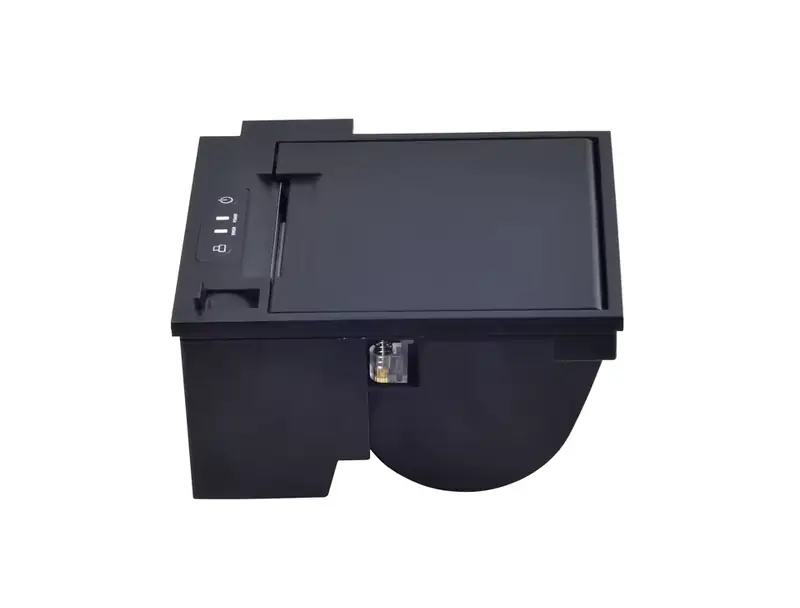

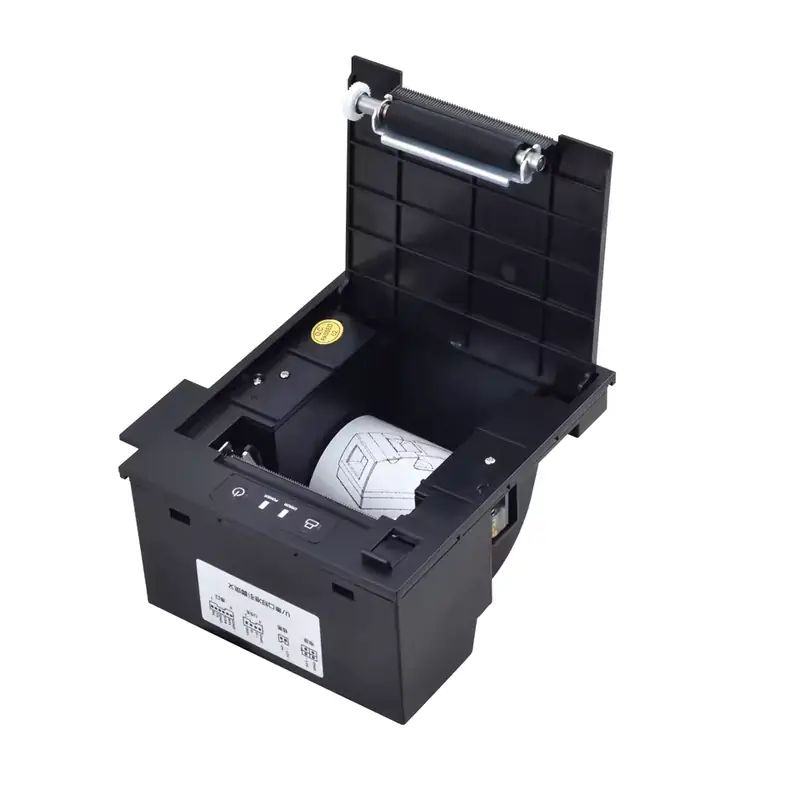

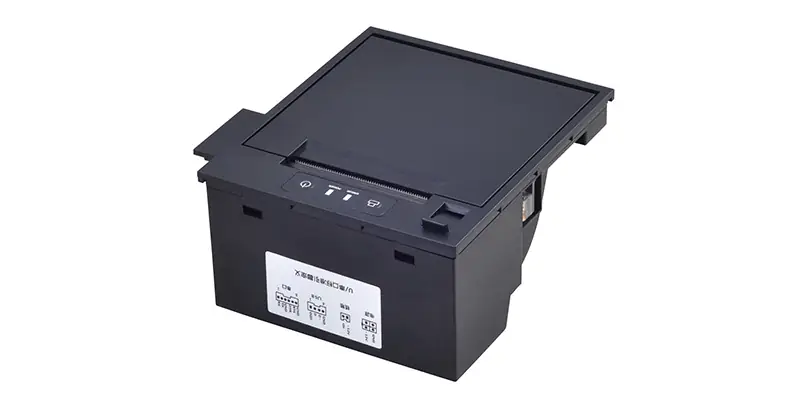

Xprinter MP12-C 58mm Panel Printer
A 58mm embedded thermal receipt printer designed for integration into equipment or systems that require printed receipts through a built-in printing unit.
- Brand
- Xprinter
- Category
- Thermal Receipt Printer
- Model
- MP12-C
Available Alternatives to MP12-C
Printer Specifications
- تقنية الطباعة
- Direct Thermal
Media Handling
- Media Width
- 57.5 ± 0.5 mm
- Maximum Paper Roll Diameter
- 60 mm
- Paper Type
- Thermal Roll Paper
- Paper Thickness
- 0.06-0.08 mm
- Print Width
- 48 mm
- Printer Emulation
- ESC/POS
- سرعة الطباعة
- 90 mm/s
- Print Resolution
- 203 dpi
- Input Buffer
- 128 KB
Printing
- Column Capacity
- 384 dots/line dots/line
Memory
- NV Flash Memory
- 4M bytes MB
Fonts
- Font A Size
- 1.5 × 3.0 mm
- Font B Size
- 1.1 × 2.1 mm
- Chinese Font Size
- 3.0 × 3.0 mm
- Character Set
- GB18030
- GB18030 Character Set Support
- Yes
Barcode Support
- Supported 1D Barcodes
- UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
- Supported 2D Barcodes
- QR Code
Power
- Printer Input
- DC 12V/2.6A
- Cash Drawer Output
- DC 12V/1A
Physical
- Dimensions
- 132.02 × 115.02 × 79.01 mm
- Weight
- 0.295 kg
Environment
- Operating Temperature
- 0~45 °C
- Operating Humidity
- 10~80 %
- Storage Temperature
- -10~60 °C
- Storage Humidity
- 10~90 %
Reliability
- Auto Cutter
- Full cut / Partial cut (command controlled)
- Cutter Life
- 500000 cuts
- Printhead Life
- 50 km
Connectivity
- Supported OS
- Windows, Linux
- Interface
- USB + Serial
Certifications
- Certifications
- CE, FCC
General
- Model
- XP-MP12-C
Features
- QR Code Printing
- Yes
- Logo Download and Printing
- Yes
- Paper Out Indicator
- Yes
Quick comparison with available alternatives
| Attribute | Reference model | Thermal Printer Xprinter XP-... | Xprinter XP-P802A - 80mm |
|---|---|---|---|
| سرعة الطباعة | 90 | 230/260/300 | 70 |
| تقنية الطباعة | Direct Thermal | Direct thermal | Line thermal |
| Interface | USB + Serial | USB | USB + Bluetooth |
| Supported OS | Windows, Linux | Windows, Linux, macOS, Android | Windows, Android, iOS, Linux |
| Media Width | 57.5 ± 0.5 | 79.5±0.5 | Not specified in the available data |
| Operating Temperature | 0~45 | 0–45 | 0–40 |
| Storage Temperature | -10~60 | -10–60 | -25–55 |
| Operating Humidity | 10~80 | 10–80 | 25 – 85 |
Compare with available products
Compare MP12-C 58mm Panel Printer with Q80A 80mm Thermal Receipt Printer – USB & Wifi
View comparison
Compare MP12-C 58mm Panel Printer with QF300 80mm Thermal Receipt Printer – USB & Lan
View comparison
Frequently asked questions about Xprinter MP12-C receipt printer
What are the main specifications, features, and functions of the Xprinter MP12-C 58mm Panel Printer?
The Xprinter MP12-C is a compact 58mm thermal receipt printer designed for installation inside devices or systems that require an integrated unit for producing paper receipts. Confirmed details about print speed, resolution, interfaces, or connectivity options are not provided. This information is not mentioned in the available data.
What types of applications is the Xprinter MP12-C Panel Printer suitable for?
This model is intended for devices or systems that need a built-in 58mm receipt-printing unit rather than a separate external printer. Its suitability can initially be assessed according to the required installation format and paper width. Compatibility with specific equipment, software, or systems is not mentioned in the available data.
Is this Xprinter MP12-C 58mm Panel Printer page for purchasing or for research and comparison?
This is a reference and research page created to present the available information about the Xprinter MP12-C and support product evaluation and comparison. It is not a current sales offer, and the product is currently unavailable. No date for renewed availability is provided. You can review currently available products in the same category.
Where can I find a similar alternative to MP12-C?
You can review currently available alternatives to MP12-C: Thermal Printer Xprinter XP-Q838L - 80mm · Xprinter XP-P802A - 80mm.
