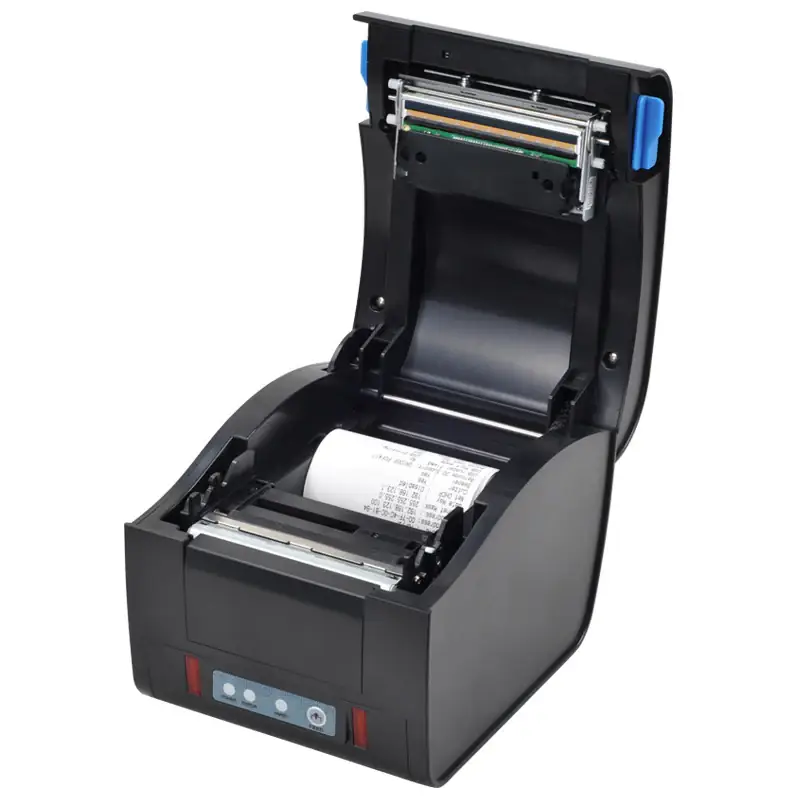

Thermal Printer Xprinter XP-D230H
Xprinter XP-D230H thermal receipt printer, receipt printer, cashier printer, point-of-sale printer
- Brand
- Xprinter
- Category
- Thermal Receipt Printer
- Model
- XP-D230H
Looking for an Available Alternative?
Printer Specifications
- تقنية الطباعة
- Direct Line Thermal
Media Handling
- Media Width
- 79.5 ± 0.5 mm
- Maximum Paper Roll Diameter
- 80 mm
- Paper Thickness
- 0.06–0.08 mm
- Paper Loading Method
- Front paper loading
- Paper Output Direction
- Front paper output
- Print Width
- 72 mm
- Printer Emulation
- ESC/POS
- سرعة الطباعة
- 230 mm/s
- Print Resolution
- 203 dpi
- Input Buffer
- 96 KB
Printing
- Line Spacing
- 3.75 mm
- Adjustable Line Spacing
- Yes
- Column Number
- Font A: 42 or 48 columns; Font B: 56 or 64 columns; Simplified/Traditional Chinese: 21 or 24 columns
Memory
- NV Flash Memory
- 256 KB
Fonts
- Font A Size
- 1.5 × 3.0 mm (12 × 24 dots)
- Font B Size
- 1.1 × 2.1 mm (9 × 17 dots)
- Chinese Font Size
- 3.0 × 3.0 mm (24 × 24 dots)
- Character Set
- PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic #2), PC852 (Latin 2), PC858, Iran II, Latvian, Arabic, PT151 (1251)
Barcode Support
- Supported 1D Barcodes
- UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
Power
- Power Adapter Input
- AC 100–240 V, 50–60 Hz
- Power Adapter Output
- DC 24 V, 2.5 A
- Printer Input
- DC 24 V, 2.5 A
- Cash Drawer Output
- DC 24 V, 1 A
Physical
- Dimensions
- 185 × 145 × 136 mm
- Weight
- 1.26 kg
- Body Material
- ABS
- Wall Mount Support
- Yes
- Printer Placement Orientation
- Vertical
Environment
- Operating Temperature
- 0–45 °C
- Operating Humidity
- 10–80 %
- Storage Temperature
- -10–60 °C
- Storage Humidity
- 10–90, non-condensing %
Reliability
- Auto Cutter
- Partial Auto Cutter
- Cutter Life
- 1500000 cuts
- Printhead Life
- 150 km
Connectivity
- Supported OS
- Windows, JPOS, Linux, Android, macOS, OPOS
- Interface
- USB + 9-pin Serial / USB + Ethernet / USB + Bluetooth
- SDK Support
- iOS, Android and Windows SDK
- Web-based IP Configuration
- Yes
Certifications
- Certifications
- CCC, CB, CE, FCC, RoHS
Software
- OPOS Support
- Yes
- Printer Test Utility
- Windows and Linux Test Utility
General
- Model
- XP-D230H
- OEM Availability
- Yes
Warranty
- Manufacturer Warranty
- 12 months
Packaging
- Units per Carton
- 6 units
Features
- Built-in Buzzer
- Yes
- LED Sound and Light Alarm
- Yes
- Printer Status Monitoring
- Yes
Protection
- Water-resistant Design
- Yes
- Oil-resistant Design
- Yes
- Dust-resistant Design
- Yes
Quick comparison with available alternatives
| Attribute | Reference model | Thermal Printer Xprinter Q80... | Thermal Printer Xprinter XP-... |
|---|---|---|---|
| سرعة الطباعة | 230 | 230 | 230/260/300 |
| تقنية الطباعة | Direct Line Thermal | Direct Thermal | Direct Thermal |
| Interface | USB + 9-pin Serial / USB + Ethernet / USB + Bluetooth | USB | USB |
| Supported OS | Windows, JPOS, Linux, Android, macOS, OPOS | Windows, Linux, macOS, Android | Windows, Linux, macOS, Android |
| Media Width | 79.5 ± 0.5 | 79.5±0.5 | 79.5±0.5 |
| Operating Temperature | 0–45 | 0–45 | 0–45 |
| Storage Temperature | -10–60 | -10–60 | -10–60 |
| Operating Humidity | 10–80 | 10–80 | 10–80 |
Compare with available products
Frequently asked questions about Xprinter XP-D230H receipt printer
What is the main advantage of the Xprinter XP-D230H?
A key advantage is its front-loading and front-output design, combined with vertical and wall-mount installation options. This makes it practical for limited spaces. It also includes a partial auto cutter, built-in buzzer, and LED sound and light alerts.
What businesses can use the Xprinter XP-D230H?
It is suitable for restaurants, kitchens, cafés, retail stores, pharmacies, and service counters that require regular receipt printing. Its water-resistant, oil-resistant, and dust-resistant design is especially useful in work areas exposed to moisture, food residue, or dust.
What print speed and resolution does the XP-D230H provide?
The printer delivers speeds of up to 230 mm/s at 203 dpi with a 72 mm printable width. This supports fast, clear receipts with organized text, pricing, totals, and supported barcodes on approximately 80 mm thermal paper.
Which connection options and operating systems does the XP-D230H support?
It is available with USB plus Serial, USB plus Ethernet, or USB plus Bluetooth. Supported systems include Windows, Linux, Android, macOS, JPOS, and OPOS, with SDK support for iOS, Android, and Windows. Buyers should select the correct interface version.
Is the Xprinter XP-D230H suitable for businesses in Syria?
Yes, it can suit restaurants, shops, and service businesses in Syria, including Damascus and Aleppo, especially where a front-output printer with resistance to water, oil, and dust is useful. Confirm the interface version and POS compatibility before ordering.
Is Xprinter XP-D230H available to buy?
No — this is a reference page for the model, and it is not currently listed for sale at EvoLink. Specs are shown for research and comparison with available alternatives.
Where can I find a similar alternative to Xprinter XP-D230H?
You can review currently available alternatives to XP-D230H: Thermal Printer Xprinter Q80B - 80mm · Thermal Printer Xprinter XP-Q838L - 80mm.
